01CARBON FIBER SHEETS
碳纤维板材
平纹、斜纹，亮光或哑光表面；尺寸与厚度按项目确认。
Plain or twill weave with glossy or matte surfaces. Dimensions and thickness are confirmed per project.
获取定制方案菜单 MENU
OEM / ODM · MADE TO DRAWING
碳纤维 CNC从图纸到交付
CARBON FIBER CNCFROM DRAWING TO DELIVERY
板材、精密定制件、无人机部件与匹克球拍。Carbon sheets, precision parts, drone components and pickleball products.
按图加工MADE TO DRAWING
样品到批量PROTOTYPE TO PRODUCTION
海外定制服务OVERSEAS OEM / ODM
PRODUCT RANGE · 产品系列
同一种材料，服务多种轻量化场景
围绕重量、刚度、结构和外观要求进行定制。Customized around weight, stiffness, structure and finish.
01
02CUSTOM CNC PARTS
碳纤维 CNC 定制件
支架、连接板、安装板、环件及复杂异形结构件。
Brackets, link plates, mounting plates, rings and complex profiles made to drawing.
获取定制方案
03DRONE FRAMES & COMPONENTS
无人机机架及配件
支持整套机架或单独部件定制，包括上下板、机臂与安装板。
Complete frames or individual components, including plates, arms and equipment mounts.
获取定制方案
04PICKLEBALL & SPORTS
匹克球拍及运动用品
从碳纤维面板、拍型与厚度，到护边、手柄、品牌与包装。
From carbon face sheets, shape and thickness to edge guard, grip, branding and packaging.
获取定制方案CUSTOMIZATION · 定制能力
每个参数，都围绕实际应用确定
EVERY PARAMETER FOLLOWS THE APPLICATION
面向海外 OEM/ODM 与定制项目，支持材料确认、CNC 加工、边缘处理、检验与批量交付。
For overseas OEM/ODM and custom programs: material confirmation, CNC machining, edge finishing, inspection and batch delivery.
材料MATERIAL
碳纤维等级、铺层与纹路
Grade, layup and weave
尺寸SIZE
外形、孔位、厚度与结构
Profile, holes, thickness and structure
表面FINISH
亮光、哑光、倒角与边缘处理
Gloss, matte, chamfer and edge finishing
交付DELIVERY
样品、小批量与批量生产
Prototype, low-volume and production runs
APPLICATIONS · 应用场景
轻量结构，覆盖多元应用
ONE MATERIAL, MULTIPLE LIGHTWEIGHT APPLICATIONS
无人机 DRONES机器人与自动化 ROBOTICS & AUTOMATION汽车轻量化 AUTOMOTIVE运动器材 SPORTS
DRONE PLATFORMS · 无人机平台
轻量结构，专为无人机平台
LIGHTWEIGHT STRUCTURES FOR DRONE PLATFORMS
支持整套机架或单独部件定制，适用于机身上下板、机臂与连接板、相机和电池安装板。
- 机身上下板 / Top & bottom plates
- 机臂与连接板 / Arms & link plates
- 相机与电池安装板 / Camera & battery mounts
- 孔位、轴距与厚度定制 / Custom geometry & thickness
FPV DRONE FRAMES · 无人机机架型号
9 款碳纤维无人机机架
覆盖 MARK4 与 ARES 战神系列的 8 至 18 英寸机架，可按项目需求进一步定制孔位、板厚与配件。MARK4 and ARES frames from 8 to 18 inches, with geometry, thickness and accessories customizable for your project.

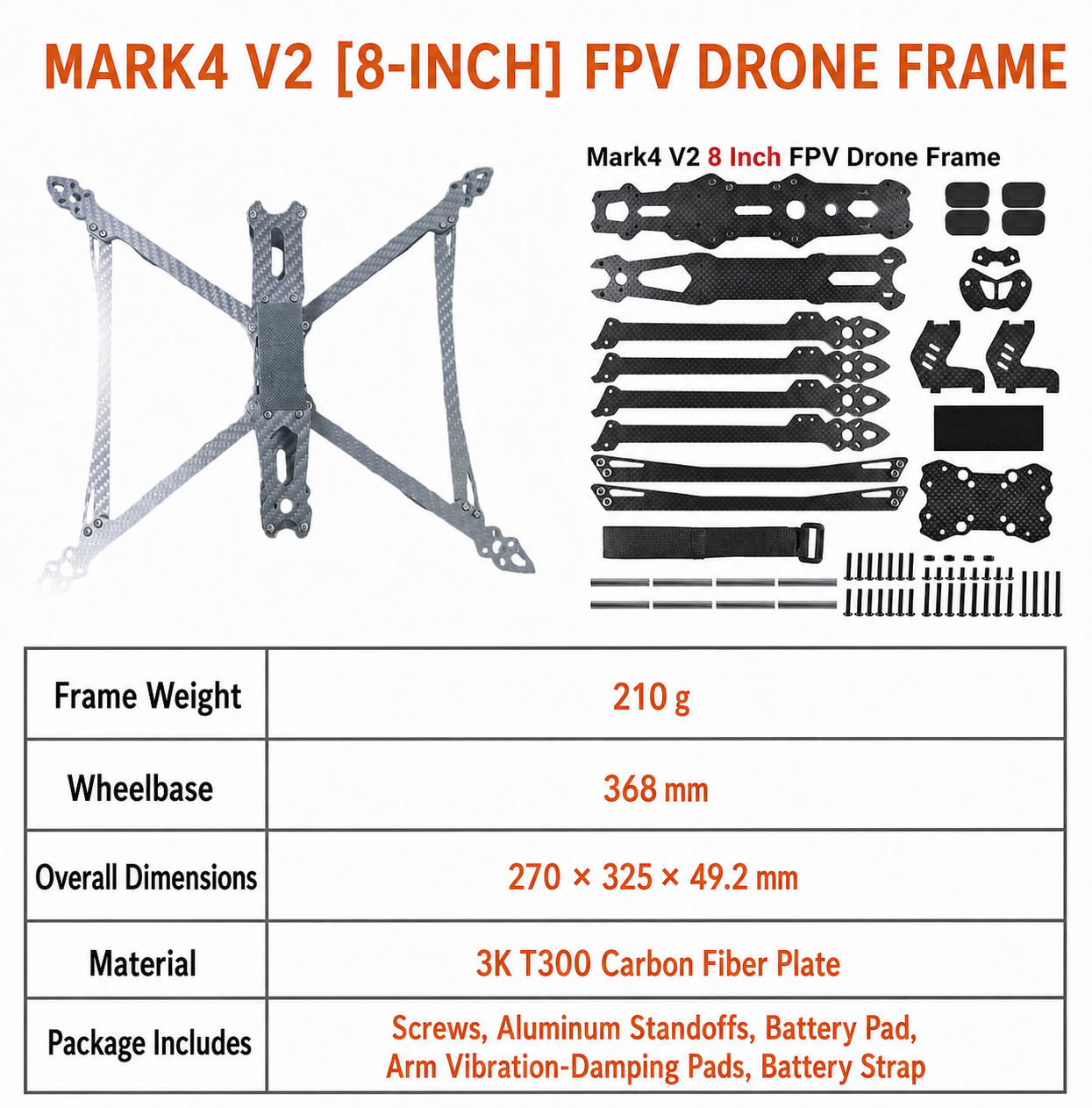

01MARK4 V2 8-Inch FPV Drone Frame
MARK4 V2 8英寸 FPV 无人机机架
- 机架重量 / WEIGHT
- 210 g
- 轴距 / WHEELBASE
- 368 mm
- 整体尺寸 / DIMENSIONS
- 270 × 325 × 49.2 mm
- 材料 / MATERIAL
- 3K T300 Carbon Fiber Plate
包装清单 / PACKAGEScrews, aluminum standoffs, battery pad, arm vibration-damping pads and battery strap.
询价此型号 / GET A QUOTE

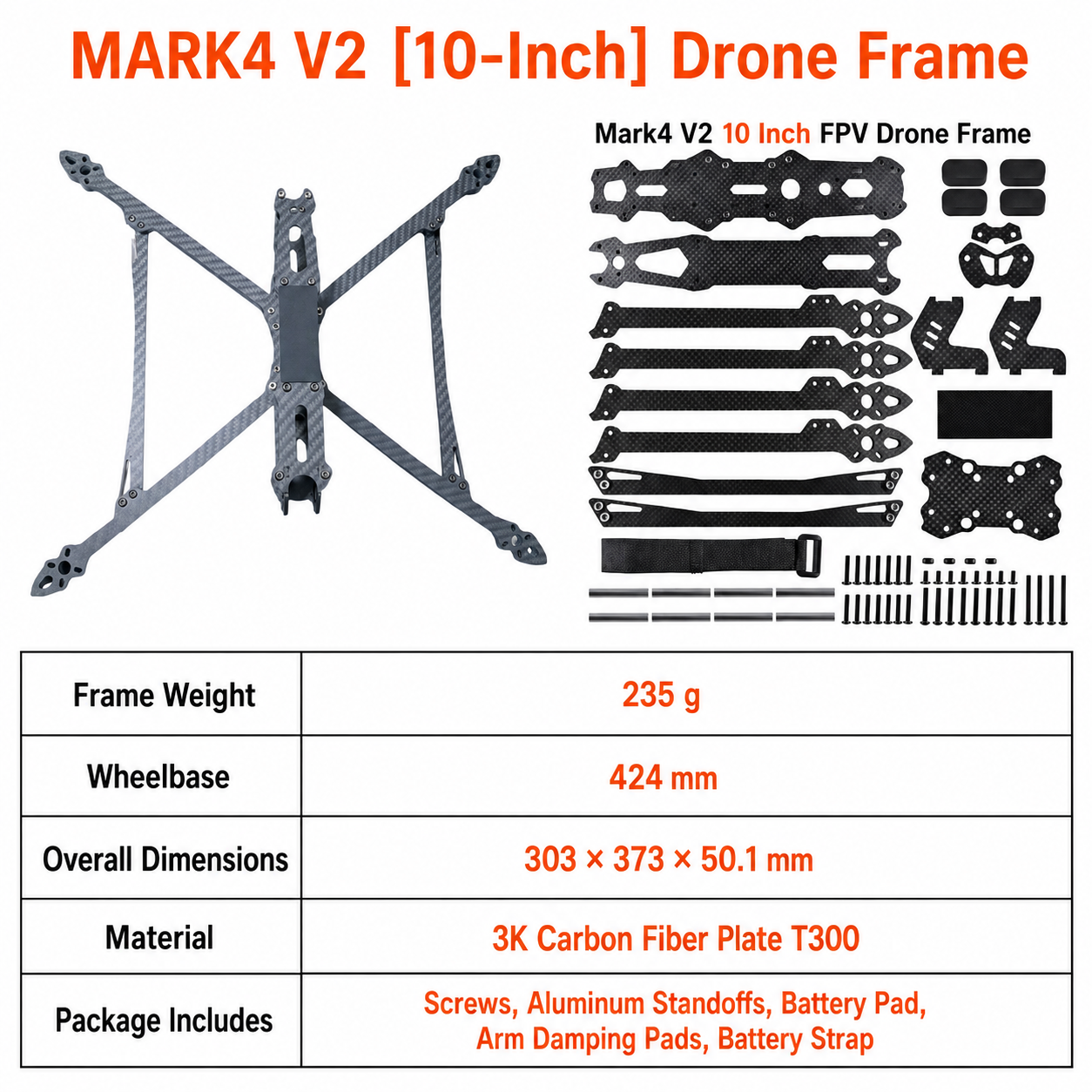

02MARK4 V2 10-Inch FPV Drone Frame
MARK4 V2 10英寸 FPV 无人机机架
- 机架重量 / WEIGHT
- 235 g
- 轴距 / WHEELBASE
- 424 mm
- 整体尺寸 / DIMENSIONS
- 303 × 373 × 50.1 mm
- 材料 / MATERIAL
- 3K T300 Carbon Fiber Plate
包装清单 / PACKAGEScrews, aluminum standoffs, battery pad, arm damping pads and battery strap.
询价此型号 / GET A QUOTE

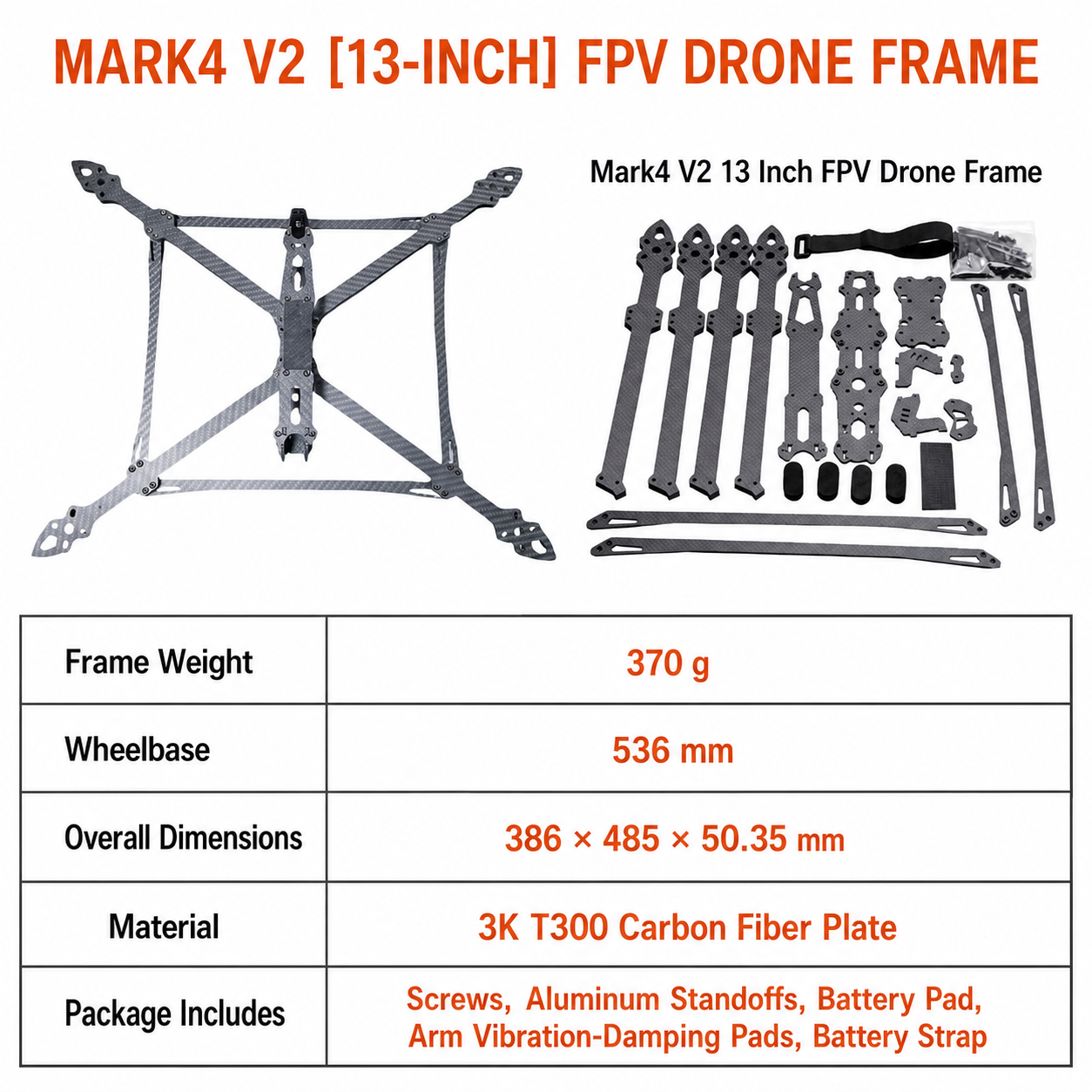

03MARK4 V2 13-Inch FPV Drone Frame
MARK4 V2 13英寸 FPV 无人机机架
- 机架重量 / WEIGHT
- 370 g
- 轴距 / WHEELBASE
- 536 mm
- 整体尺寸 / DIMENSIONS
- 386 × 485 × 50.35 mm
- 材料 / MATERIAL
- 3K T300 Carbon Fiber Plate
包装清单 / PACKAGEScrews, aluminum standoffs, battery pad, arm vibration-damping pads and battery strap.
询价此型号 / GET A QUOTE

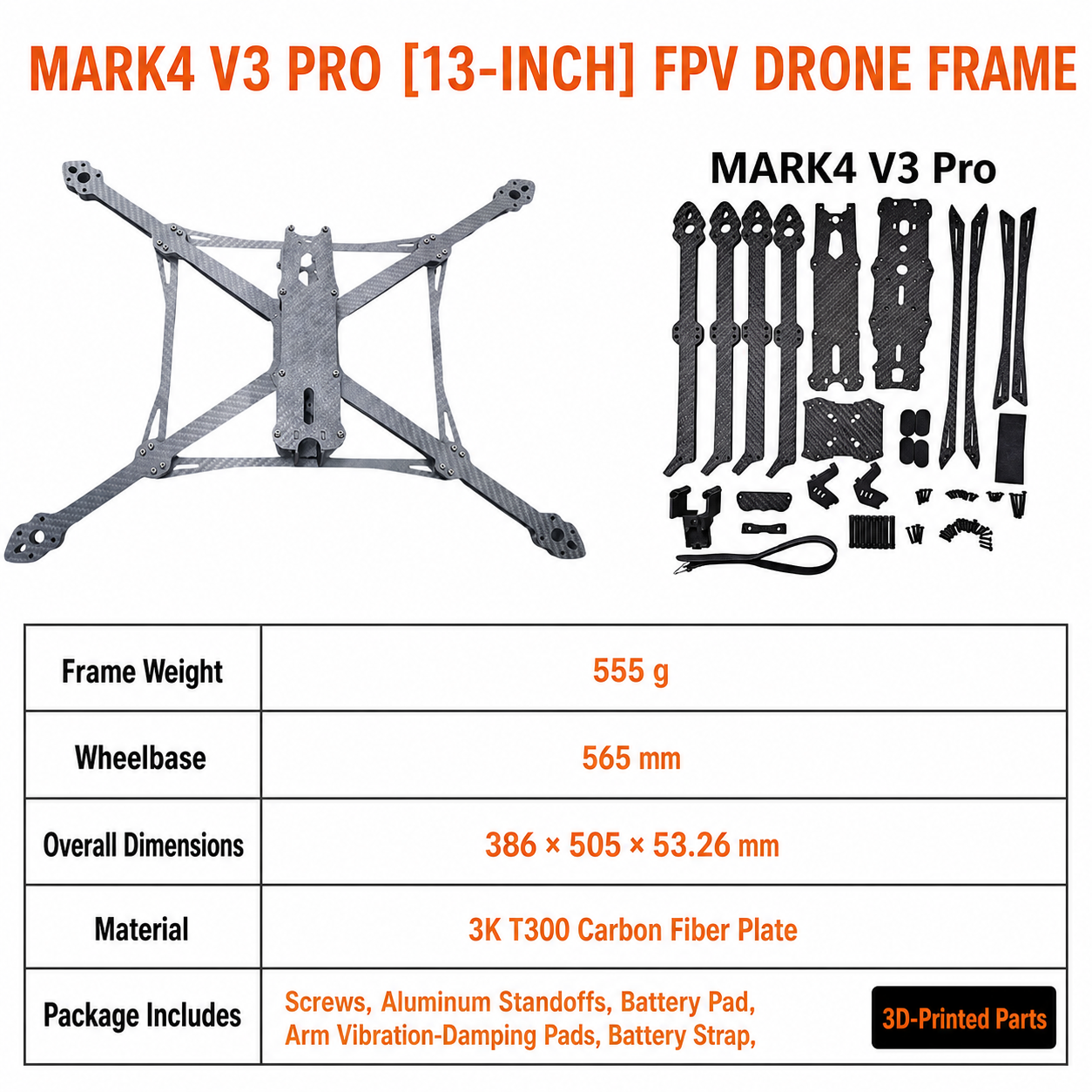

04MARK4 V3 Pro 13-Inch FPV Drone Frame
MARK4 V3 Pro 13英寸 FPV 无人机机架
- 机架重量 / WEIGHT
- 555 g
- 轴距 / WHEELBASE
- 565 mm
- 整体尺寸 / DIMENSIONS
- 386 × 505 × 53.26 mm
- 材料 / MATERIAL
- 3K T300 Carbon Fiber Plate
包装清单 / PACKAGEScrews, aluminum standoffs, battery pad, arm vibration-damping pads, battery strap and 3D-printed parts.
询价此型号 / GET A QUOTE

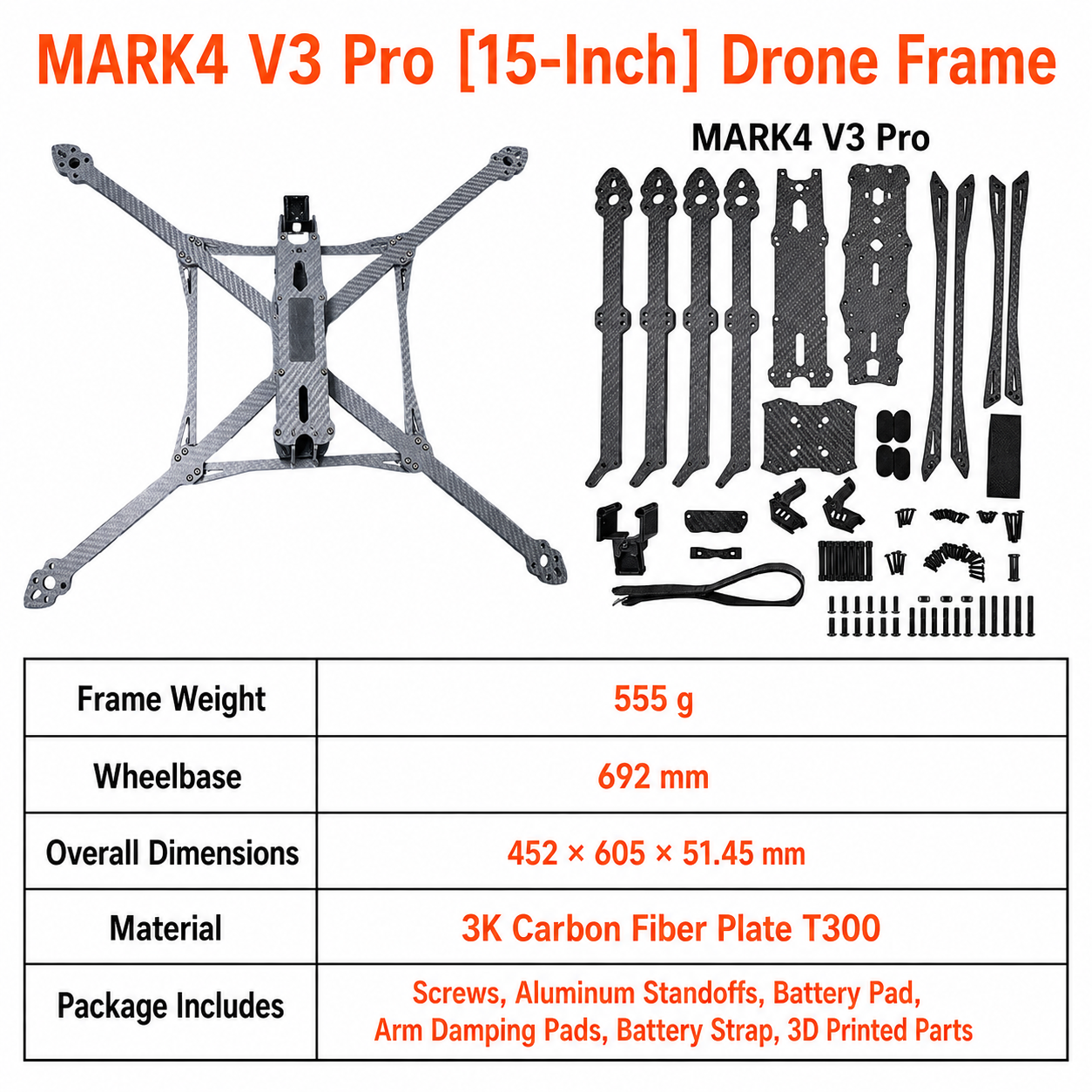

05MARK4 V3 Pro 15-Inch FPV Drone Frame
MARK4 V3 Pro 15英寸 FPV 无人机机架
- 机架重量 / WEIGHT
- 555 g
- 轴距 / WHEELBASE
- 692 mm
- 整体尺寸 / DIMENSIONS
- 452 × 605 × 51.45 mm
- 材料 / MATERIAL
- 3K T300 Carbon Fiber Plate
包装清单 / PACKAGEScrews, aluminum standoffs, battery pad, arm damping pads, battery strap and 3D-printed parts.
询价此型号 / GET A QUOTE

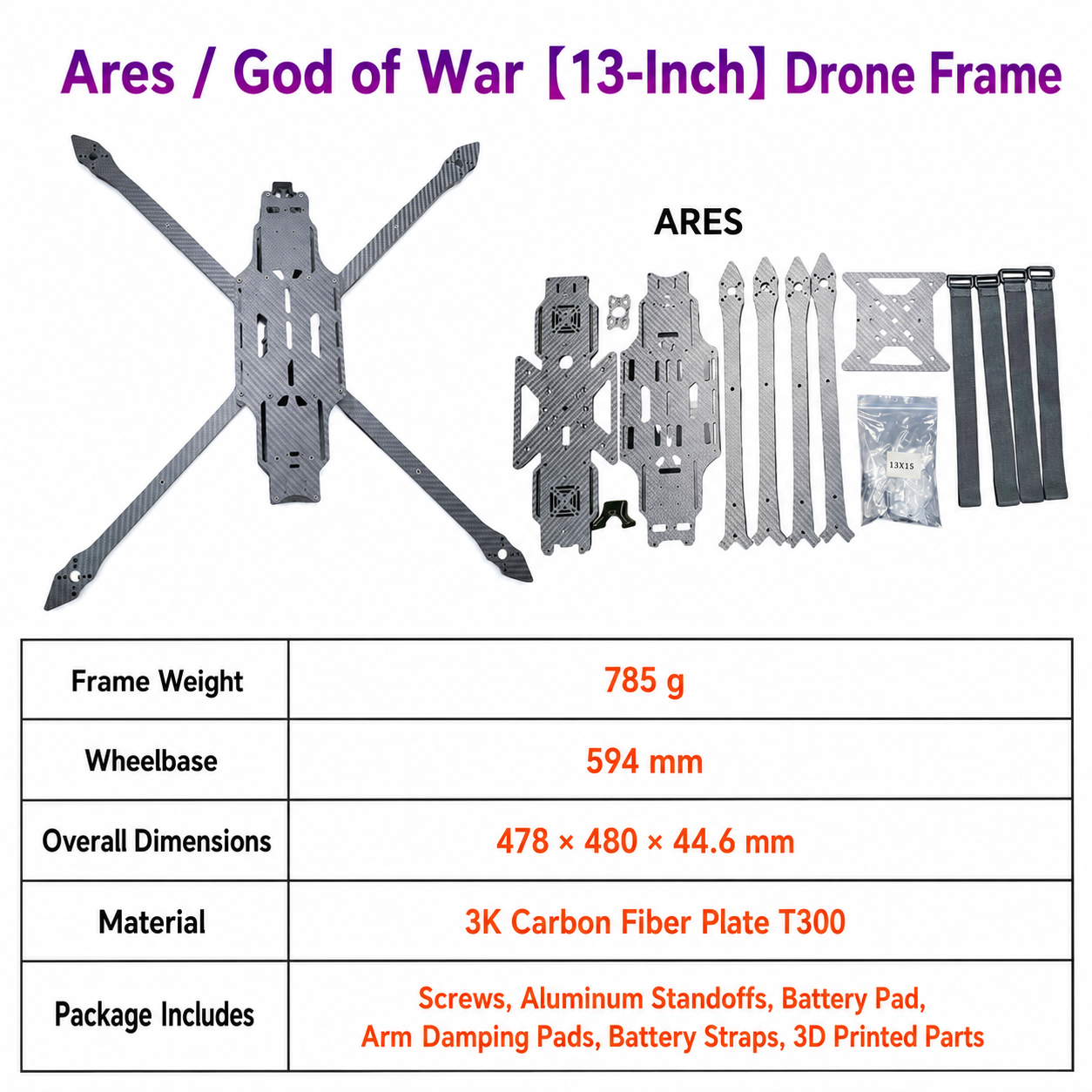

06ARES / God of War 13-Inch FPV Drone Frame
ARES 战神 13英寸 FPV 无人机机架
- 机架重量 / WEIGHT
- 785 g
- 轴距 / WHEELBASE
- 594 mm
- 整体尺寸 / DIMENSIONS
- 478 × 480 × 44.6 mm
- 材料 / MATERIAL
- 3K T300 Carbon Fiber Plate
包装清单 / PACKAGEScrews, aluminum standoffs, battery pad, arm damping pads, battery straps and 3D-printed parts.
询价此型号 / GET A QUOTE

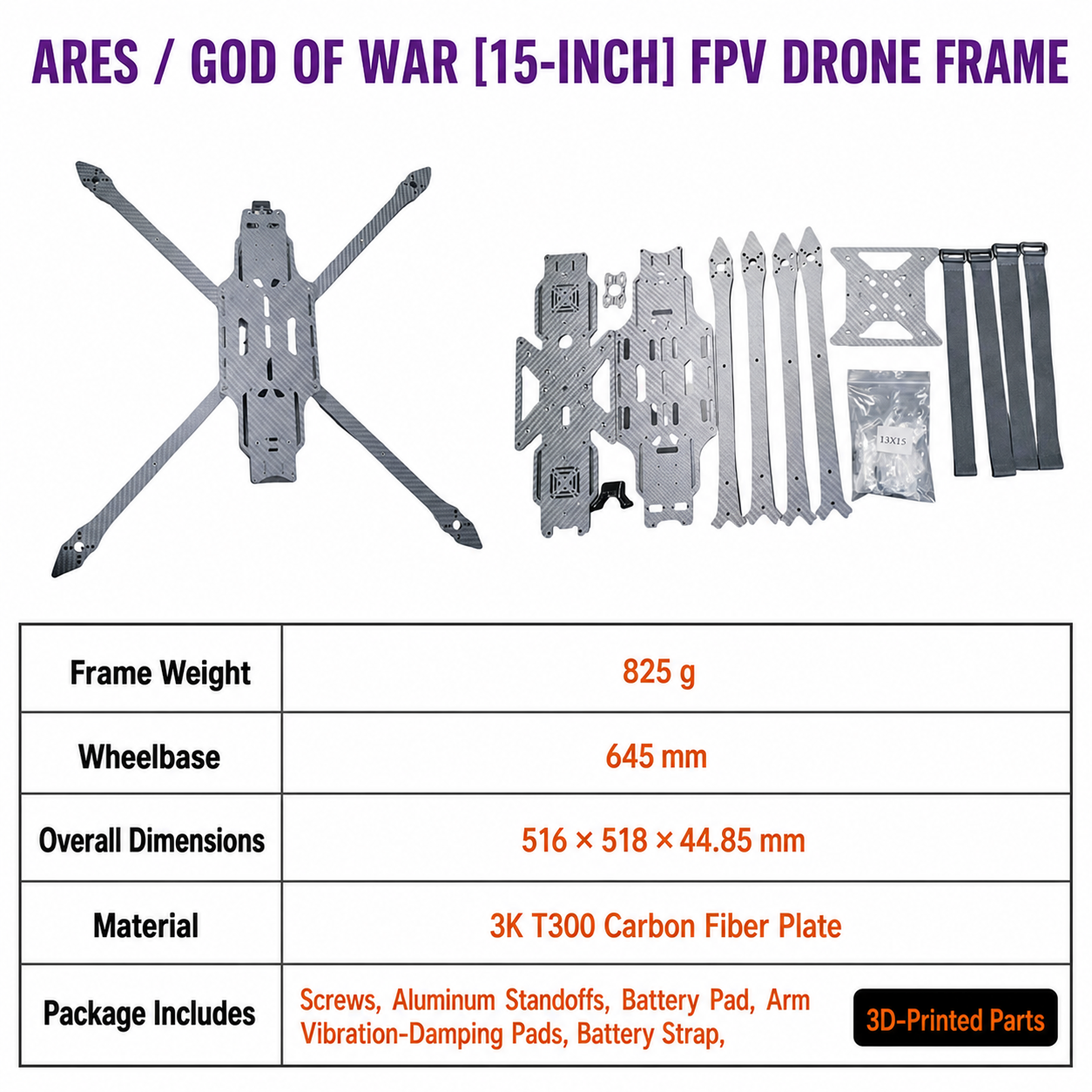

07ARES / God of War 15-Inch FPV Drone Frame
ARES 战神 15英寸 FPV 无人机机架
- 机架重量 / WEIGHT
- 825 g
- 轴距 / WHEELBASE
- 645 mm
- 整体尺寸 / DIMENSIONS
- 516 × 518 × 44.85 mm
- 材料 / MATERIAL
- 3K T300 Carbon Fiber Plate
包装清单 / PACKAGEScrews, aluminum standoffs, battery pad, arm vibration-damping pads, battery strap and 3D-printed parts.
询价此型号 / GET A QUOTE

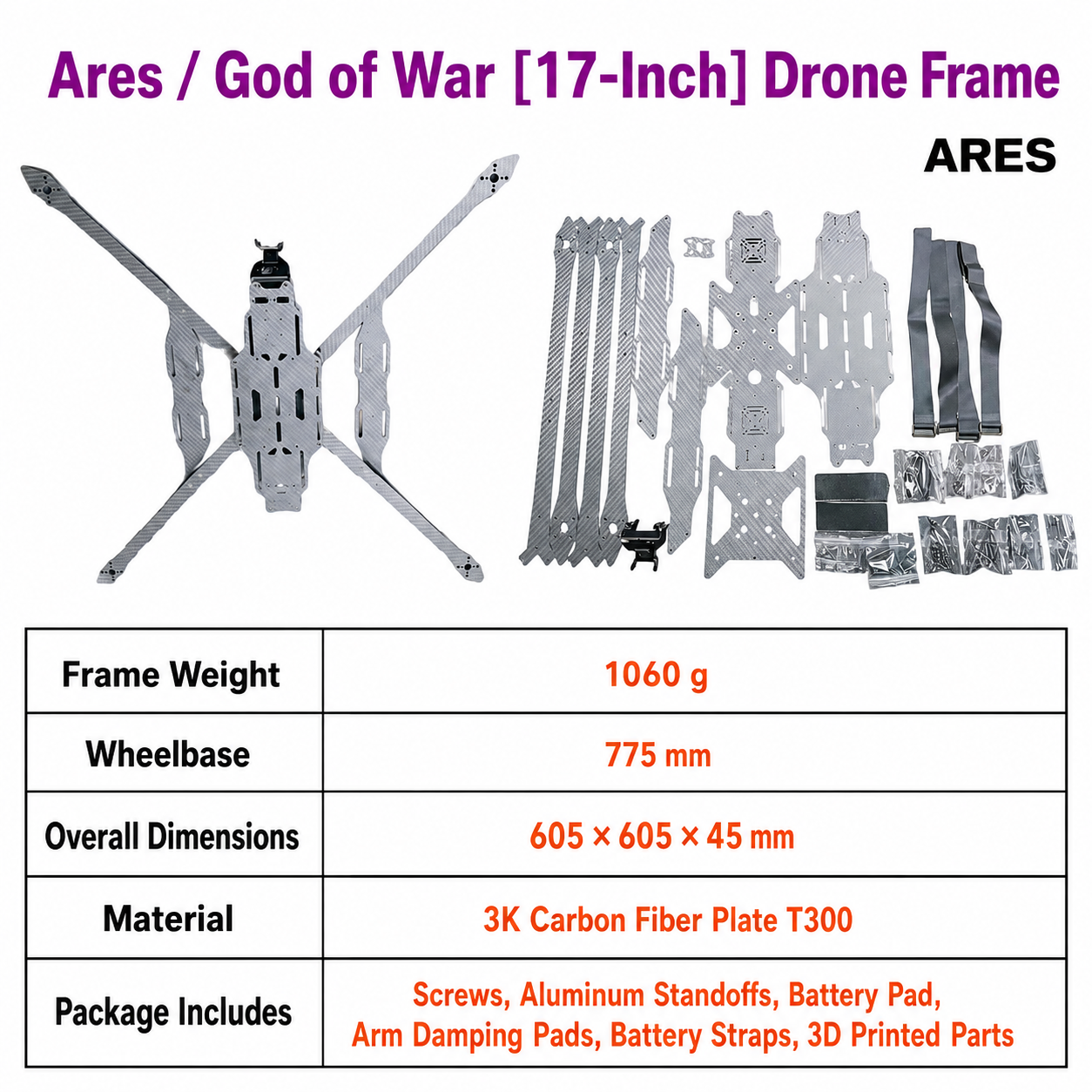

08ARES / God of War 17-Inch FPV Drone Frame
ARES 战神 17英寸 FPV 无人机机架
- 机架重量 / WEIGHT
- 1060 g
- 轴距 / WHEELBASE
- 775 mm
- 整体尺寸 / DIMENSIONS
- 605 × 605 × 45 mm
- 材料 / MATERIAL
- 3K T300 Carbon Fiber Plate
包装清单 / PACKAGEScrews, aluminum standoffs, battery pad, arm damping pads, battery straps and 3D-printed parts.
询价此型号 / GET A QUOTE

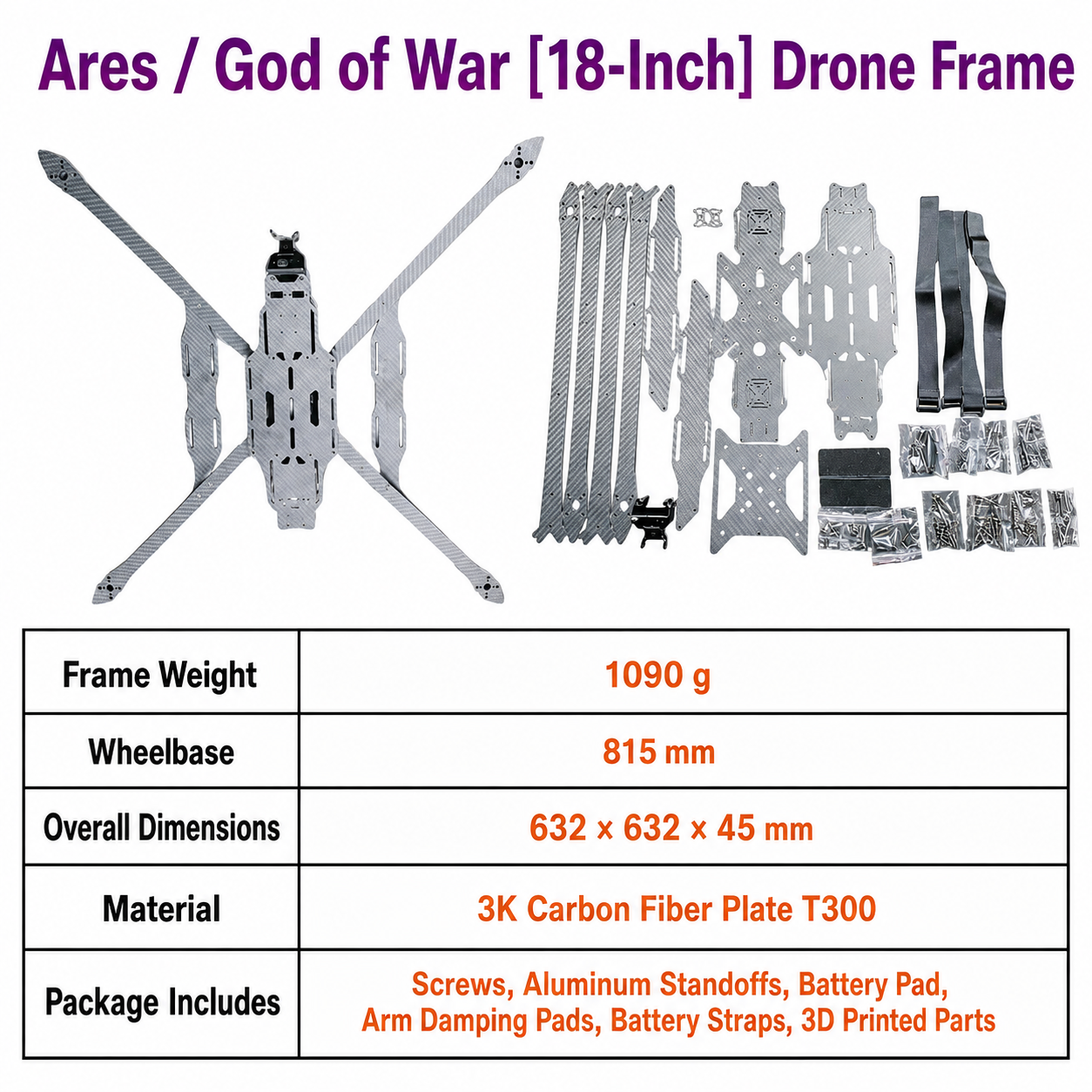

09ARES / God of War 18-Inch FPV Drone Frame
ARES 战神 18英寸 FPV 无人机机架
- 机架重量 / WEIGHT
- 1090 g
- 轴距 / WHEELBASE
- 815 mm
- 整体尺寸 / DIMENSIONS
- 632 × 632 × 45 mm
- 材料 / MATERIAL
- 3K T300 Carbon Fiber Plate
包装清单 / PACKAGEScrews, aluminum standoffs, battery pad, arm damping pads, battery straps and 3D-printed parts.
询价此型号 / GET A QUOTE需要其他尺寸或按图加工？发送图纸、数量与应用要求，我们会提供定制方案。Need another size or made-to-drawing parts? Send your drawing, quantity and application for review.
WhatsApp 咨询定制
PICKLEBALL OEM / ODM · 匹克球拍
从碳面板到完整球拍
FROM CARBON FACE TO COMPLETE PADDLE
适合品牌方、批发商与定制运动项目的 OEM/ODM 合作。
OEM/ODM support for brands, wholesalers and custom sports programs.
- 碳纤维面板 / Carbon face sheets
- 拍型与厚度 / Shape and thickness
- 表面纹理 / Surface texture
- 护边、手柄与包装 / Edge guard, grip & packaging
CUSTOM PROCESS · 定制流程
五步完成定制项目
为了更快报价，请提供图纸、数量、材料或表面要求和产品用途。For a faster quote, send your drawing, quantity, material or finish and application.
- 01
发送图纸
SEND DRAWING
- 02
审图报价
REVIEW & QUOTE
- 03
样品确认
SAMPLE APPROVAL
- 04
生产检验
PRODUCTION & QC
- 05
包装出货
PACK & SHIP
START YOUR PROJECT · 开始项目
让下一件碳纤维产品，从图纸开始
LET YOUR NEXT CARBON-FIBER PRODUCT START WITH A DRAWING.
发送图纸、数量、材料与用途，我们将据此评估加工方案。Send your drawing, quantity, material and application for project review.
